EQ 系列激光管

EQ Series Sealed-off CO2 Glass Laser Tube

Suitable for non-metal cutting, such as leather, advertising acrylic, frame density board, knife template material.It can also be used for cutting stainless steel, carbon steel, cold rolled plate and other metal sheets.

Technical Parameters

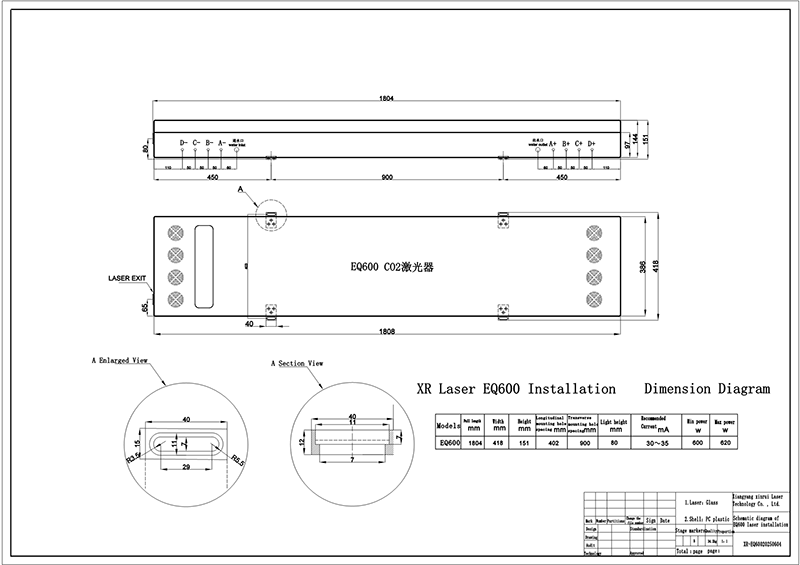

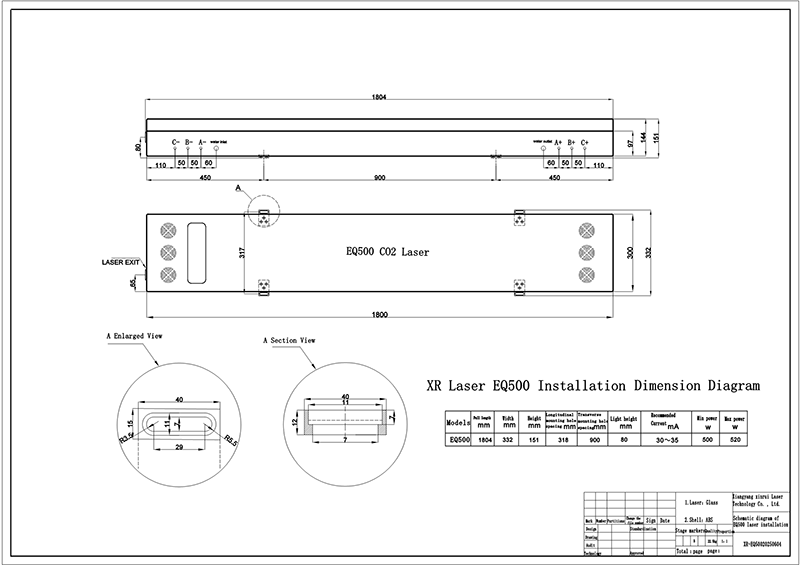

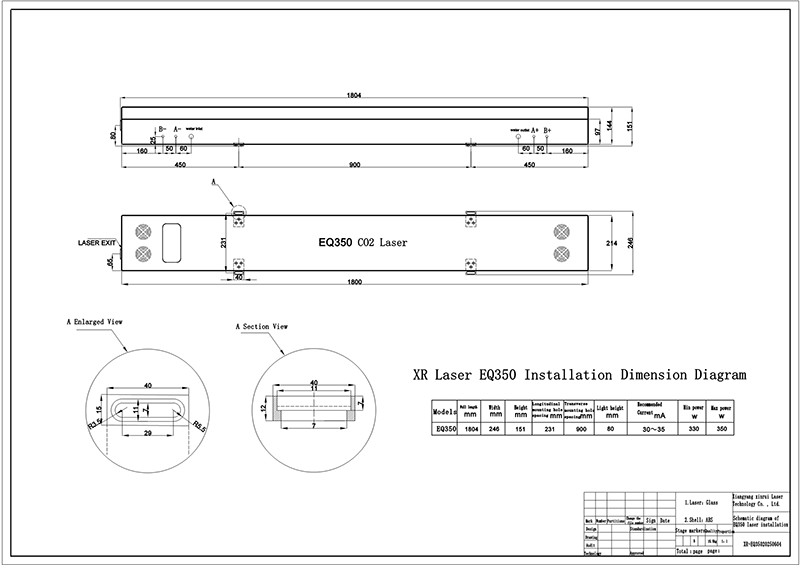

ad6d0152-2ad7-42dd-b7f2-6aa0aca555b9.pngc86d426a-4bdb-4c44-97c6-20907b3ae8fe.pngfa3f62bb-5a71-427b-82fb-089b5838136a.png

ModelRated Power (W)Peak Power (W)Optimum Current Use (MA)Length (mm)Width (mm)Height (mm)Catalyzer
EQ35033035030~351804246151yes
EQ50050052030~351804332151
EQ60060062030~351804418151
